Overview

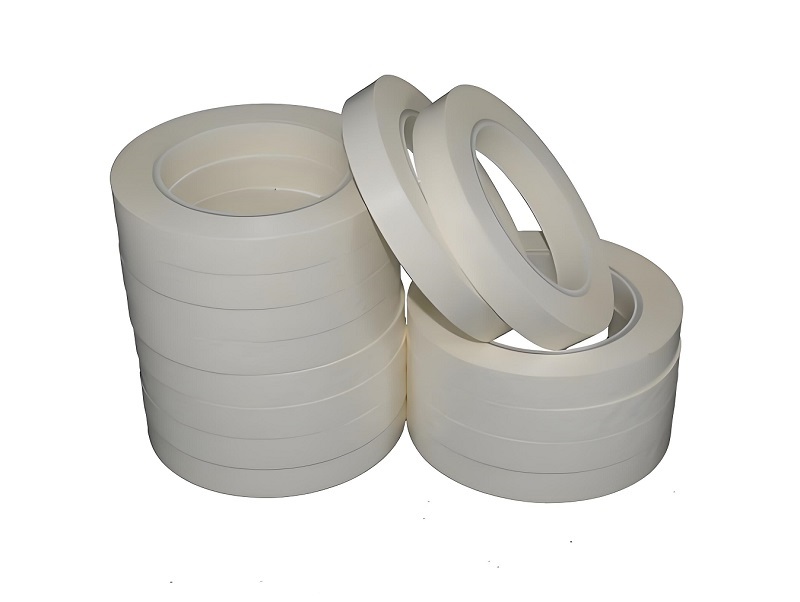

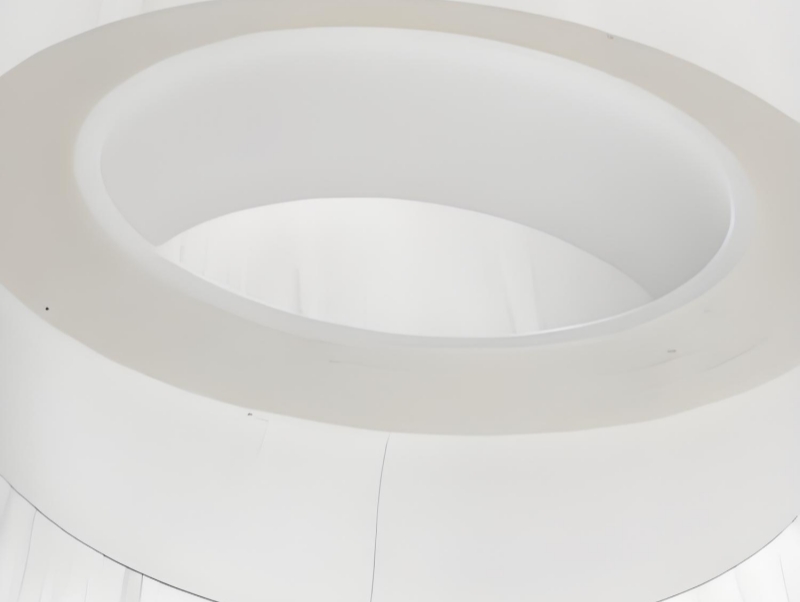

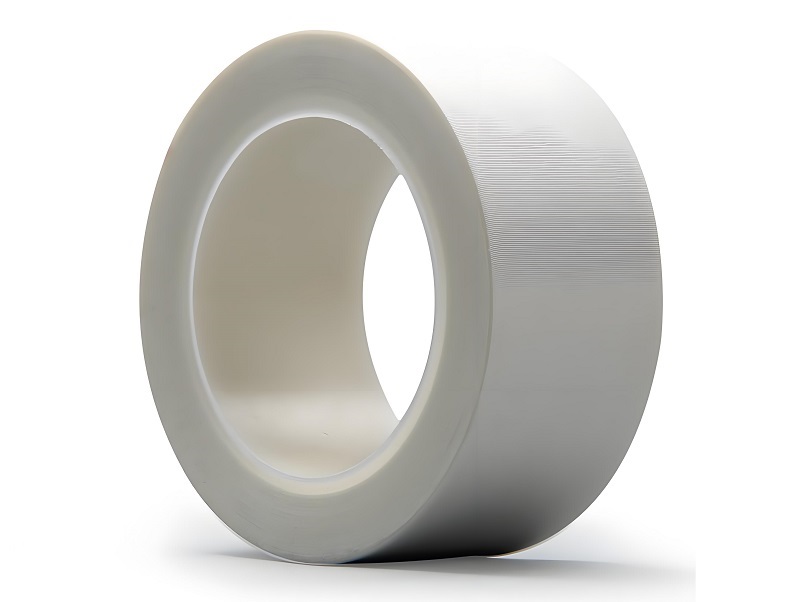

Glass cloth adhesive tape is a high-performance tape made with glass fiber cloth as the base material and coated with high-quality adhesive. It features excellent resistance to high temperatures, chemical corrosion, abrasion, and more. This tape from NB Technology Co., Ltd. is widely used in industries such as electrical insulation, automotive manufacturing, aerospace, construction, etc.
Heat Resistance: Can withstand continuous temperature ranges from -65°F/-54°C to 450°F/232°C, with some products capable of enduring intermittent temperatures up to 550°F/288°C or higher.
Chemical Corrosion Resistance: Good resistance to many chemicals.
High Tensile Strength: High tensile strength makes it resistant to breaking under tension.
Abrasion Resistance: Resistant to scratching and wear.
Electrical Insulation: Excellent for ensuring safe operation of electrical equipment.
Flame Retardancy: Some products meet flame retardant standards like UL 200°C (392°F) and CSA 180°C (356°F).
Electrical Insulation: Used for insulating protection of electrical devices like motors and transformers.
Automotive Manufacturing: For securing and protecting auto parts, e.g., wiring harnesses and body sealing.
Aerospace: For cabin sealing and securing engine components in aircraft.
Construction: Fixing insulation materials and sealing pipes.
Stable Performance: Maintains stability in harsh conditions, long service life.
Easy to Use: Easy to cut and apply, customizable according to needs.
Eco-friendly: Meets environmental requirements without producing harmful substances during use.
Clean the surface to be bonded, ensure it's dry and oil-free.
Apply the tape onto the object, press firmly with fingers or tools to ensure good adhesion.
Avoid contact with sharp objects that may puncture the tape.
Store in a dry place, away from direct sunlight.
Specifications
| Item description: | Single Sided Glass Cloth Tape |
| Brand name: | NB |
| Adhesive: | Silicone |
| Feature: | ● Good flame retardancy, easy to peel;● Good flexibility, good adhesion, easy to use;● Acid and alkali resistance, excellent insulation performance, anti-voltage over 2.5KV;● High temperature and cold resistance, applicable temperature -30℃ to 300℃. |
| Usage: | ● Suitable for electric motors and electrical appliances bundling wire;● Interlayer insulation and bundling of transformers, wires, etc. |
| Substrate material: | Fiberglass cloth |
| Initial adhesion: | ≥17 |
| Thickness of substrate: | 140 microns |
| Peel force (g/25mm): | ≥600 |
| Specification: | Can be totally customized for you |
| Color: | White |
| MOQ: | About 600Kgs |
| Delivery time: | Within 15 days through peak and off season for you |
| Sample: | Free sample is always available for you to test our quality |
| Packing: | Carton packaging |
| Payment method: | T/T / L/C /Cash or negotiable |
| HS Code: | 3919909090 |
Production Process
FILM BLOWING
In the film blowing process, we use advanced production equipment and imported raw materials to strictly control the protective film quality from the source.
PRINTING
In the printing process, we use environmentally friendly painting by introducing advanced production techniques and equipment, it is now possible to print four patterns and colors in one film.
COATING
We use imported glue and strictly control the quality of finished films, to achieve moderate viscosity and ensure no residue after the removal, also provide you with a good experience of use.
CUTTING
There are seven machines in our cutting workshop, each and every one of them can be adjusted to cut different lengths of protective films to meet your needs.
PACKAGING
We use standard seaworthy packaging to pack the films for you to avoid any possible damage during the transit and storage, packing of customization is also available for you.
Film Blowing
In the film blowing process, we always insist on using brand new and environmental-friendly LLDPE raw materials to ensure the stable quality from the very beginning and we absolutely say “No” to any recycled raw materials.
Film Casting
In the film casting process, our experienced team has every input data precisely set and checked to ensure the good and stable output of our final stretch wrap films. Because we always pay particular attention to every single detail during the whole proce
Film Testing
Our stretch wrap films feature strong toughness and tear resistance, and can not be penetrated easily by the nib under the intense stretch. They also feature strong tensile strength which enables you to wrap three more pallets with the same meters.
Packaging
We use standard seaworthy packaging to pack the stretch wrap films for you to avoid any possible damage during the transit and storage, you can also enjoy customized packaging from our side.
FILM BLOWING
In the film blowing process, we use advanced production equipment and imported raw materials to strictly control the protective film quality from the source.
Container Stuffing
Protective Film for Deep Drawing
Transportation of Protective Film for Deep Drawin
Packing of Protective Film for Deep Drawin
Loading of Protective Film for Deep Drawin
